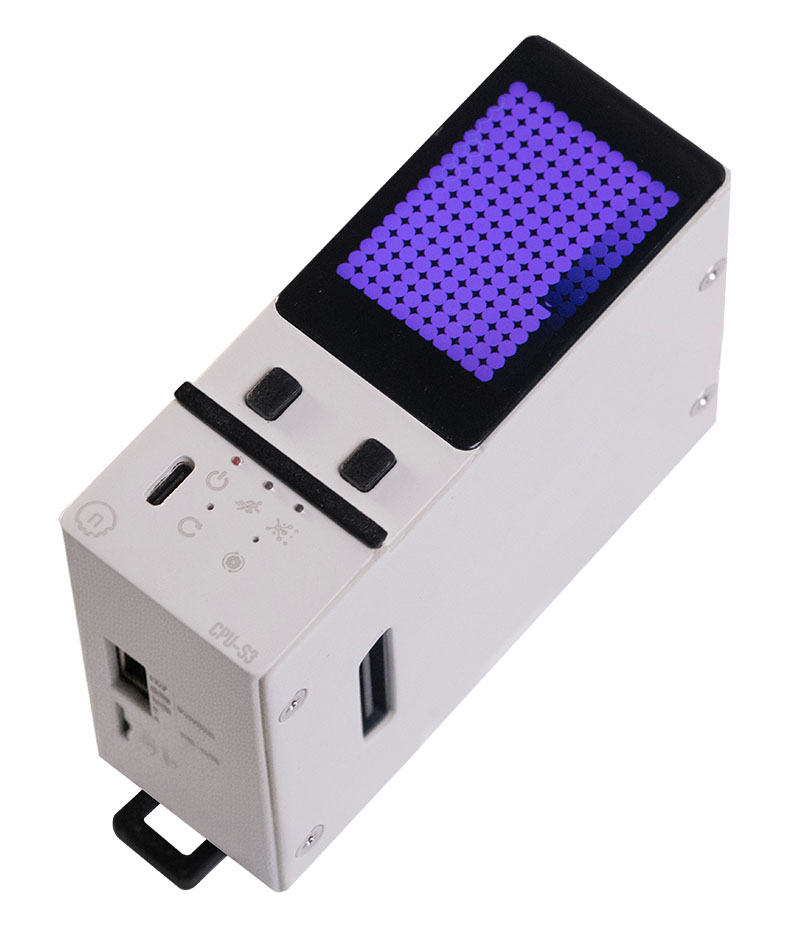

NORVI X CPU-ESPS3 X1 Modul (Modular Industrial IoT Controller, ESP32 S3)

NORVI X CPU-ESPS3 X1 Modul (Modular Industrial IoT Controller, ESP32 S3)
  • Norvi X !
  • CPU Modul !
  • Up to 200 I/O Points !
  • TFT LCD Display !

  • ESP32-S3-WROOM-1U-N16R2
  • Programmable Controller for IoT with Wi-Fi, Ethernet and Bluetooth
  • DS3231 RTC
  • TFT SPI Display with touch input
  • DIN-Rail Mount
  • Built-in RS-485 Communication
  • Built-in Ethernet Communication
[more]

Share

98.00 EUR
incl. 19% VAT, plus shipping
Available in 6 weeks.
Add to cart

  • ESP32-S3-WROOM-1U-N16R2
  • Programmable Controller for IoT with Wi-Fi, Ethernet and Bluetooth
  • DS3231 RTC
  • TFT SPI Display with touch input
  • DIN-Rail Mount
  • Built-in RS-485 Communication
  • Built-in Ethernet Communication


Modular Industrial IoT Controller revolutionizes factory automation with flexibility, connectivity, and scalability in one platform. The NORVI X enables seamless integration between legacy equipment and modern cloud systems. Built for machine builders and system integrators, this all-in-one controller delivers reliable performance across manufacturing, energy, and infrastructure applications.

Its scalable architecture supports expansion from basic I/O to complex systems with up to 200 I/O points. Equipped with 4G LTE (Optional), Wi-Fi, and Ethernet, it enables remote monitoring and industrial automation anywhere. The platform reduces deployment time while maintaining industrial-grade reliability for diverse industrial environments.

Supported Expansion Modules:
- Digital Input Modules: 4-DI, 8-DI, 16-DI
- Relay Output Modules: 4-RO, 8-RO
- Transistor Output Modules: 4-TO, 8-TO, 16-TO
- Analog Input Modules: 4× 0–10 V, 4× 4–20 mA
- Analog Output Modules: 4× 0–10 V / 4–20 mA
- Communication Modules: EC25 and A7672 cellular modems
- Power Modules: 3-channel current transformer module



Range of product NORVI X CPU Modul
Product type Modular Programmable Controller
CPU Processor: Dual‑core 32‑bit (ESP32‑WROOM32) running at 160 MHz. Memory: ~ 520 KB SRAM, Flash: ~ 4 Mb (≈ 4 MB) onboard module. Connectivity: WiFi (802.11 b/g/n) + Bluetooth v4.2. I/O Support: Maximum 200 I/O points per controller Hot-swappable modules I2C address configuration Distributed architecture support
Communication WiFI 2.5GHz / Bluetooth
Ethernet
RS-485
Displays and Visual Indicators 2.0 inch TFT LCD Display 240*320
Supply Voltage: 24 V DC / 400mA
DIN-rail mounting (TH35 type) for industrial panel installation.
Dimensions 81 x 104 x 37,5 mm
Envirement IP20
Operating altitude: 0-2000 meters
Operating Temperature: -10 ... - +85°C
Shock resistance: 15 gn for 11ms
Resistance to electrostatic discharge: 4kV on contact / 8kV on air
Communication Ports: RS‑485 (half‑duplex) included in certain models
Expansion Port Allows connection of dedicated expansion modules via I²C, UART, etc.
Certifications EN 61131-2:2007
EN 61010-1:2010+A1:2019
EN IEC 61010-2-201:2018
2014/30/EU- Electromagnetic Compatibility (EMC)
Annex III, Part B, Module C
Data sheet Download (PDF)
Data sheet Print view
Specifications Download (PDF)
