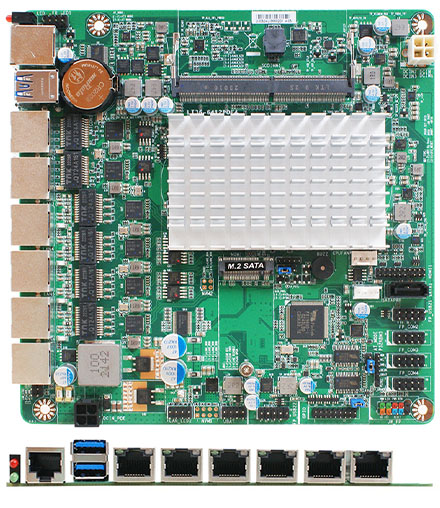

Jetway JLI36-64120P4 Thin-ITX (Intel Elkhart lake J6412 SoC Processor, 6x LAN)

Jetway JLI36-64120P4 Thin-ITX (Intel Elkhart lake J6412 SoC Processor, 6x LAN)
  • Intel Elkhart lake J6412 SoC !
  • 6* 2.5 GbE LAN !
  • JLI36-6412P4
  • Mini ITX !

  • Intel® Elkhart lake J6412 SoC Processor (2.0GHz/QC)
  • 1* DDR4 3200MHz SO-DIMM up to 32GB
  • 6* 2.5 GbE (LAN3/4/5/6 Support PoE, 802.3af/at compliance)
  • 2* USB3.2 (Gen.1), 4* USB2.0
  • 4* COM (COM1: RS232 for RJ45, COM2: RS232/422/485, COM3/4: RS232)
  • 1* M.2 M-key (2242 SATA interface), 1* SATAIII
  • Onboard TPM2.0 (Option)
  • On board 64GB eMMC (Optional)
  • 12V DC-in12V DC-in


Share

329.00 EUR
incl. 19% VAT, plus shipping
Available in 3-7 days
Add to cart
RAM :

SSD (M.2 NVME):

OS:

Build/Install:
Model – LI36-64120P4
– LI36-64122P4 (TPM2.0)
– LI36-64124P4 (eMMC)
Form Factor – Mini-ITX (170 * 170mm)
Processor System – Intel® Elkhart Lake J6412 2.0G/QC SoC Processor
– AMI Flash ROM BIOS
Memory – 1* DDR4 3200MHz So-DIMM up to 32GB
Storage – Onboard 64GB eMMC (LI36-64124P4 Only)
– 1* SATAIII (6Gb/s)
– 1* M.2 M-key (2242 SATA interface, Support SSD)
Expansion – NA
Ethernet – 6* Intel® I225-V 10/100/1000/2500Mbps
– LAN3/4/5/6 PoE LAN, Support IEEE 802.3af/at (Total Max 100W)
Graphics – Intel® HD Graphics, shared memory
– 1* HDMI1.4 (Max Resolution: 2560×1600@60Hz)
Audio – NA
Watchdog Timer – From Super I/O to drag RESETCON#
– 256 segments (10sec ~ 255min)
Internal I/O – 4* USB2.0 (PH2.0)
– 16bit GPIO (5V)
– 3* COM (COM2 Support RS232/422/485)
– 1* HDMI
– 1* SATAIII (6Gb/s)
– 1* SATA Power
– 1* Chassis intrusion
– 1* LAN LED
– 1* FP_LED
– 1* FP_JW
– 1* SMBUS
– 1*AT model
– 1* DC Power Connector (12V DC-in)
– 1* PoE Power Connector (12V DC-in)
– 1* CPU FAN Header (Smart FAN)
External I/O – 2* USB3.2 (Gen.1)
– 1* Console (RS232)
– 6* 2.5GbE (LAN3/4/5/6: PoE PS Function)
– 2* LED (Power LED + HDD LED)
Power 12 DC-in, AT/ATX Supported
– AT: Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready
Compliance – CE, FCC, LVD, RoHS, REACH (Option)
Temperature – Operating Temperature: -10 ~ 60° C
– Storage Temperature: -20 ~ 70° C
– Humidity: 10% ~ 90% RH @40°C (non-condensing)
OS Support – Windows 10 / 11, Linux
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (ARM) Download (PDF)
Jetway Catalog (Mainboards) Download (PDF)
