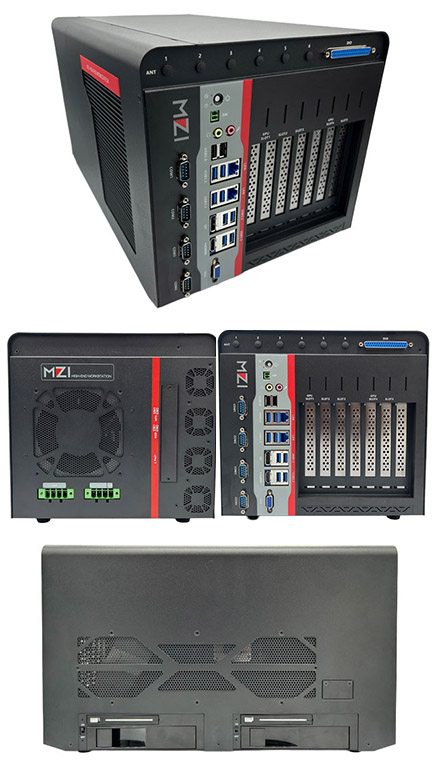

Mitac MZ1-10ADP (Intel Alder Lake-S, 2x LAN, 4x RS232, 5x PCIe)

Mitac MZ1-10ADP (Intel Alder Lake-S, 2x LAN, 4x RS232, <b>5x PCIe</b>)
  • Intel Alder Lake !
  • Intel® R680E !
  • 2x Gigabit LAN !
  • 5x PCIe Slot !

  • Intel® 12th Gen Alder Lake-S Xeon / Core i (Up to 125W)
  • Support 2 x DDR5 SO-DIMM (Up to 64GB)
  • HDMI, DisplayPort, VGA, Dual 2.5G LAN
  • Support 10 x USB, 4 x RS232, and 32-bit DIO
  • 9~48V Wide Power Range






Share

2498.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart
SYSTEMCPU12th Gen Intel® Alder Lake-S Core i9/i7/i5/i3/Celeron/Pentium (Up to 125W)
CHIPSETIntel® R680E
SYSTEM MEMORYMax. 64GB (Xeon: ECC / Non-ECC; Core-i: Non-ECC)
/ 2 x 262-pin SO-DIMM / DDR5 4800 MHz
GRAPHICSIntel® UHD Graphics
DISPLAY INTERFACEVGA / DisplayPort 1.4 / HDMI 1.4
STORAGE SLOT2 x mSATA / 1 x M.2 B Key 2280/2260/2242 Slot / 2 x Hot Swappable 2.5” HDD Tray (support 7-9.5mm height) / 2 x Hot Swappable 3.5” HDD Tray
/ 1 x CFast slot / 1 x M.2 M Key 2280/2262/2242 SSD slot
ETHERNET1 x Intel® I225-LM 2.5GbE LAN + 1 x Intel® I225-V 2.5GbE LAN
AUDIORealtek® ALC888S
I/O CHIPSETNuvoton NCT6126D
TPMNuvoton NPCT750AAAYX TPM2.0
EXPANSION SLOT1 x M.2 3052 / 3042 / 2242 / 2260 / 2280 B key (USB3.0 , SATAIII, PCIeX1) w/ SIM slot
/ 1 x M.2 2230/ 2242 / 2260 / 2280 M key (PCIeX4 NVME, SATAIII)
/ 1 x M.2 2230 E key (CNVi , PCIeX1, USB 2.0)
/ 2 x Mini PCIe Full size (USB2.0 / SATAIII / PCIeX1) /
#1: 1 x PCIe X16 (Gen4) or PCIe X8 (Gen4)
#2: 1 x PCIe X4 in PCIe X16 physical connector (Gen4)
#3: 1 x PCIe X4 in PCIe X16 physical connector (Gen4)
#4: 1 x PCIe X8 in PCIe X16 physical connector (Gen4 x8 = Gen3 x16 Bandwidth)
#5: 1 x PCIe X1 in open ended connector (Ge
INTERNAL SPEAKER1 x Buzzer
INDICATORPower Button / Power LED / HDD LED
FRONT I/O1 x HDMI 1.4
/ 1 x 2-pin Terminal Block Remote Power on / off / 3 x RS232 / 4 x USB3.2 Gen2 / 4 x USB3.2 Gen1 / 6 x SMA hole with rubber cap / 1 x DB37 connector for 32 bit DIO / 1 x DisplayPort 1.4 / 1 x VGA / 2 x USB 2.0
/ 1 x RS232 / 422 / 485
/ 1 x Mic-in
/ 1 x Line-out
REAR I/O2 x 4-pin Terminal Block Power Input
/ 2 x SIM slot to M.2 B Key slot
/ 2 x SIM slot to mPCIe slot
/ 1 x CFast slot
POWER REQUIREMENTPOWER INPUT9~48V Wide Range DC Input w/ Terminal Block Connectivity
POWER ADAPTEROptional 300W/1000W AC to DC PSU
MECHANICALTHERMAL DESIGNFan
MOUNTINGWallmount
DIMENSIONS (W X D X H)264 x 415 x 245mm
WEIGHT13kg (28.7 lb)
ENVIRONMENTALOPERATING TEMPERATURE*Please consult with your sales contact window about the Operating Temperature of GPU Card Configurations / -40°C ~ 70°C (w/ 35W CPU, w/o GPU card)
-40°C ~ 60°C (w/ 65W CPU, w/o GPU card)
-40°C ~ 50°C (w/ 80W CPU, w/o GPU card)
-40°C ~ 40°C (w/ 125W CPU, w/o GPU card)
*Max OT limit -10°C w/ dual GPU card / with 0.7m/s Air Flow and Wide Temperature Memory/Storage
STORAGE TEMPERATURE-40 ~ 85°C (-40 ~185°F)
OPERATING HUMIDITY10% ~ 90% R/H (Non-condensing)
STORAGE HUMIDITY10% ~ 95% @85°C non-condensing
VIBRATION RESISTANCEMIL-STD-810H, Follow Method 514.8C-I Category 4 for Truck
SHOCK RESISTANCEMIL-STD-810H 516.8 procedure I - functional shock, Operating 20G, 11ms (Follow IEC 60068-2-27 half sine)
CERTIFICATIONCE / FCC Class B
OSOS SUPPORTWindows® 10 IoT LTSC 64bit (LTSC 2021) / Ubuntu 22.04
PACKING LISTPACKAGE1 x Embedded System / 1 x Wall Mount Brackets
/ 1 x 2 pin Terminal Block Male Connector / 2 x 4 pin Terminal Block Power Connector
Data sheet Download (PDF)
Data sheet Print view
Mitac Catalogue Download (PDF)
Mitac Edge AI Guide Download (PDF)
