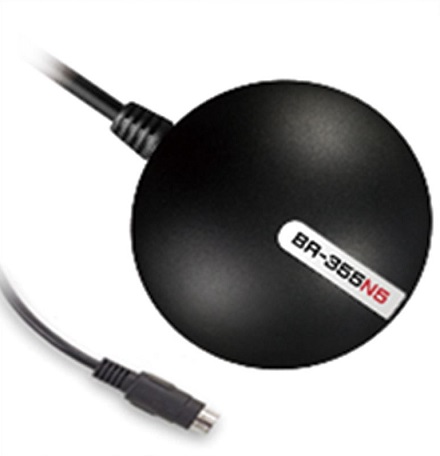

Globalsat BR-355N5 Serial RS232 GPS Receiver (Galileo, QZSS, SBAS)

Globalsat BR-355N5 Serial RS232 GPS Receiver (Galileo, QZSS, SBAS)
  • MediaTek Chip !
  • LED indicator for GPS fix !
  • RS232 + PS/2 !

BR-355N5 features Serial interface, high GNSS sensitivity, and low power consumption. The BR-355N5 is powered by High sensitivity GNSS solution. The BR-355N5 can provide you with superior sensitivity and performance even in urban canyon and dense foliage environment. The BR-355N5 supports 75 channel all-in-view tracking. BR-355N5 acquires and tracks satellites in the shortest time. The cable allows for easy routing to your equipment behind, headliners and side panels and terminates to a custom PS/2 connector.

In scope of supply included is a connector cable for RS232(Data)+PS/2(power).

  • High sensitivity solution
  • Very high sensitivity chipset (Trackin [more]

    Share

59.95 EUR
incl. 19% VAT, plus shipping
In Stock (18 pcs)
Add to cart

BR-355N5 features Serial interface, high GNSS sensitivity, and low power consumption. The BR-355N5 is powered by High sensitivity GNSS solution. The BR-355N5 can provide you with superior sensitivity and performance even in urban canyon and dense foliage environment. The BR-355N5 supports 75 channel all-in-view tracking. BR-355N5 acquires and tracks satellites in the shortest time. The cable allows for easy routing to your equipment behind, headliners and side panels and terminates to a custom PS/2 connector.

In scope of supply included is a connector cable for RS232(Data)+PS/2(power).

  • High sensitivity solution
  • Very high sensitivity chipset (Tracking Sensitivity: -165 dBm)
  • Extremely fast TTFF (Time To First Fix) at low signal level
  • Support NMEA 0183 data protocol
  • Built-in Backup power to reserve system data for rapid satellite acquisition
  • Built-in patch antenna
  • Super-cohesive magnetic for mounting on the car
  • Water resistant and non-slip on the bottom
  • USB interface connection port
  • LED indicator for GPS fix or not fix

    • ->LED OFF: Receiver switched off
    ->LED ON: No fixed network, signal search
    ->LED flashes: Position fixed




General
Chipset MediaTek AG3335MN
Frequency GPS, Galileo, QZSS, SBAS : L1, 1575.42 MHz C/A code
GLONASS : L1, 1602 MHz
BeiDou : B1, 1561.098 MHz
C/A code 1.023 MHz chip rate
Channels 75 track verification channels
Sensitivity Tracking: -165 dBm

Accuracy
Accuracy 3 meters, 2D RMS
2.5 meters, 2D RMS, SBAS enabled
Velocity 3 meters, 2D RMS 2.5 meters, 2D RMS, SBAS enabled
Time 1us synchronized to GPS time

Datum
Default WGS-84

Acquisition Time
Reacquisition 0.1 sec., average
Hot start < 1 sec., average
Cold start < 33 sec
< 15 sec with AGPS

Dynamic Conditions
Altitude 18,000 meters (60,000 feet) max
Velocity 515 meters /second (1000 knots) max
Acceleration Less than 4g
Jerk 20m/sec

Power
Main power input 4.5V ~ 6.5V DC input
Power consumption 42mA @5V

Protocol
Electrical level Output voltage level: 0V ~ 2.85V
Baud rate 4800 bps, 8 data bits, no parity, 1 stop bit
Output message NMEA 0183 GGA, GSA, GSV, RMC
GLL, VTG, ZDA, GRS, GST

Physical Characteristics
Dimension 53mm diameter, 19.2mm height
Cable Length 1.5M
Operating temperature -40℃ to +85℃
Data sheet Download (PDF)
Data sheet Print view
