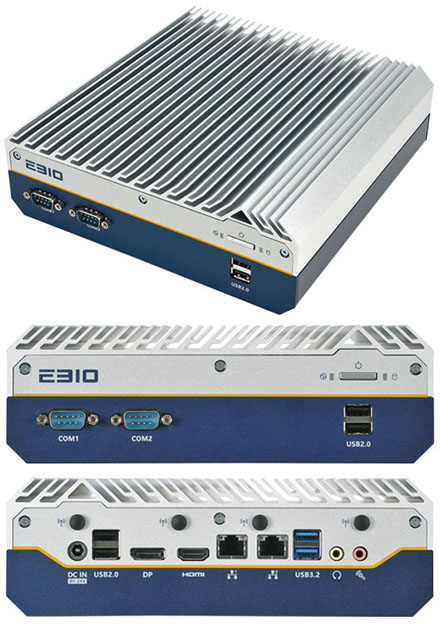

Mitac E310-10EHI-J6413-AC (Intel Elkhart Lake J6413, 2x LAN, 2-6x COM) [FANLESS]

Mitac E310-10EHI-J6413-AC (Intel Elkhart Lake J6413, 2x LAN, 2-6x COM) <b>[FANLESS]</b>
  • Intel® Elkhart Lake !
  • Fanless !
  • 2x LAN !
  • 2-6x RS232/422/485 !

  • Intel® Elkhart Lake ATOM/Celeron/Pentium BGA Processor (TDP up to 12W)
  • Support 2 x DDR4 SO-DIMM (Up to 32GB)
  • Compatible with M.2 3042/3052 + SIM slot for 5G cellular network connectivity
  • Support Dual Display for HDMI, DisplayPort
  • 4 x USB2.0, 2 x USB3.1 Gen2, 2 x COM (Max. 6 x COM by Option)
  • 8~24V wide range DC input





Share

469.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart
CPU11th Gen Intel® Elkhart Lake Celeron J6413 / Option: Pentium N6415, Celeron N6211, Celeron N6210, and Atom x6413E (Up to 12W)
CHIPSETIntel® SoC Integrated
SYSTEM MEMORYDDR4 3200 MHz
/ 2 x 260-pin SO-DIMM
/ Max. 32GB (Non-ECC)
GRAPHICSIntel® HD Graphics
DISPLAY INTERFACEDisplayPort 1.4 / HDMI 1.4
STORAGE SLOT1 x 2.5 HDD / SSD (Default w/ HDD Bracket, SATA, and SATA Power Cable in Accessories) / 1 x M.2 B Key 2280/2260/2242 Slot / *M.2 and mSATA are multiplex with SATA ports / 1 x mSATA
ETHERNET2 x Intel® I211-AT Giga LAN
AUDIORealtek® ALC888S
I/O CHIPSETNuvoton NCT6126D(eSPI)
TPMTPM Header / (support optional TPM module board NPCT750)
EXPANSION SLOT1 x Mini PCIe Full size (USB2.0 / SATAIII / PCIeX1)
/ 1 x NanoSIM slot to M.2 B Key slot
/ 1 x M.2 2230 E key (PCIeX1, USB 2.0)
/ Storage/LTE/5G Slot: 1 x M.2 2280/2260/2242/3042/3052 B Key (USB2.0/*PCIeX1/SATAIII) *Not support M.2 M Key NVMe SSD
/ **5G card support is by BOM option. Please check with sales about the M.2 B Key 3052 5G card spec if you have any request
INDICATORPower LED / HDD LED
FRONT I/ODefault 2 X RS232 / Option 6 COM ports ( 5 X RS232 + 1 X RS232/422/485)
REAR I/O2 x USB3.2 Gen2
/ 2 x I211-AT Giga LAN
/ 1 x DisplayPort 1.4
/ 1 x HDMI 1.4
/ 2 x USB 2.0
/ 1 x Mic-in
/ 1 x Line-out
/ 4 x SMA Antenna (Optional for WiFi/LTE function)
POWER INPUT8~24V Wide Range DC-in Jack Connectivity
POWER ADAPTERAC to DC / DC19V / 3.4A / 65W adapter
THERMAL DESIGNFanless
MOUNTINGWallmount
DIMENSIONS (W X D X H)209mm x 209mm x 68mm
WEIGHT2.7 kg
MATERIALCold rolled steel and extruded aluminum front panel
OPERATING TEMPERATURE-20°C ~ 60°C (4 ~ 140°F)
STORAGE TEMPERATURE-40 ~ 85°C (-40 ~185°F)
OPERATING HUMIDITY10% ~ 95% R/H (Non-condensing)
VIBRATION RESISTANCE5Hz~500Hz / 2Grms / 3Axis (Non-operating)
SHOCK RESISTANCE120G, 2ms Duration (Non-operating)
CERTIFICATIONCE / FCC Class A
OS SUPPORTUbuntu 20.04 / Windows® 10 IoT 64bit (2019 LTSC / 2021 LTSC) / Kernel 5.10 or lower
PACKAGE1 x Embedded System / US + EU Power Cord / 1 x Power Adapter (19V, 65W, DC Jack Type) / 1 x 18 cm SATA Cable / 1 x 18 cm SATA Power Cable / 1 x M.2 3052/2260 adapter plate
Data sheet Download (PDF)
Data sheet Print view
Mitac Catalogue Download (PDF)
Mitac Edge AI Guide Download (PDF)
