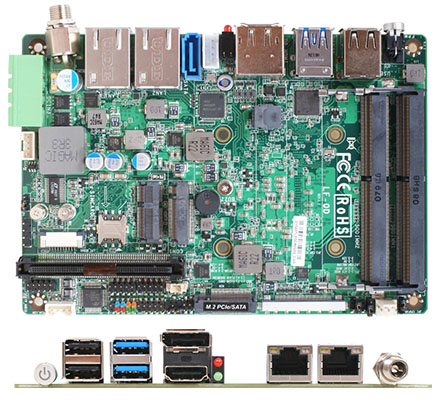

Jetway JLF0D-E0 (Intel Comet Lake-U Celeron 5205U) [PCIe 4.0, 2x LAN, 12-36V DC-in]

Jetway JLF0D-E0 (Intel Comet Lake-U Celeron 5205U) [PCIe 4.0, 2x LAN, 12-36V DC-in]
  • Intel Comet Lake-U !
  • 3,5" Form Factor !
  • PCIe 4.0 !

  • Intel® 10th Gen Comet Lake Celeron 5205U 1.9GHz/DC Core MCP Processor
  • 2* DDR4 2400MHz, up to 64GB
  • 1* Intel®I219LM GbE, 1* Intel® i211AT GbE
  • 1* SATA III (6Gb/s), 1* M.2 (M-key), 1* M.2 E-key Support CNVi, 1* M.2 B-key Support 4G/5G Module
  • 1* HDMI/DP + 1* eDP
  • 2* RS232/422/485, 2* USB3.0, 3* USB2.0
  • 12~36V DC in
  • 3.5” Form Factor (146 *102 mm)
  • JLF0D-E2 support TPM2.0 (option)


Share

298.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks.
Will be ordered for you.
Add to cart
RAM :

SSD (M.2 NVME):

OS:

Build/Install:
Model – JLF0D-E0
– JLF0D-E2 (TPM2.0)
Form Factor – 3.5” ( 146 * 102mm)
Processor System – Intel® 10th Gen Comet lake Celeron 5205U Dual Core MCP Processor, 1.9GHz, 15W
– Intel SoC chipset
– AMI 128Mb Flash ROM BIOS
Expansion Slot – 1* M.2 E-key (2230,Support CNVi)
– 1* M.2 B-key (3042/3052,Support 4G/5G Module)
– 1* SIM Card Holder (Nano)
Memory – 2* DDR4 2400MHz DRAM SO-DIMM up to 64GB
Graphics – Intel® HD Graphics, shared memory
– 1* HDMI 1.4 (Max Resolution : 4096×2304@24Hz)
– 1* DP (Max Resolution : 4096×2304@60Hz)
– 1* eDP (Max Resolution : 4096×2304@60Hz)
– Support Triple Displays
Ethernet – 1* Intel® i219LM GbE
– 1* Intel® i211AT GbE
Audio – USB Audio
– 3W AMP speaker
Storage – 1* M.2 M-key (2242/2280, SATA or NVMe- PCI-Ex4)
– 1* SATAIII
Rear I/O – 1* HDMI
– 1* DP
– 2* RJ45 Ethernet
– 2* USB3.0
– 2* USB2.0
– Power button
– 12~36V DC-in jack
Internal I/O – 1* USB2.0
– 2* RS232/422/485
– 1* SATAIII (6.0Gb/s)
– 3* M.2 (M-key, E-key, B-key)
– 1* GPIO (8 bit, 5V)
– 1* AT mode
– 1* I2C/SMBUS
– 1* FP_Audio
– 1* Speaker
– JLF0D-E2 support TPM2.0 (Option)
Watchdog Timer – From Super I/O to drag RESETCON#
– 256 segments (10sec ~ 255min)
Power DC-in 12~36V, AT/ATX Supported
– AT: Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready
Compliance – CE, FCC, RoHS, REACH
Temperature – Operating: 0°C ~ 60°C
– Storage: -20°C ~ 70°C
– Humidity: 10% ~ 90% RH @40°C (non-condensing)
OS Support – Windows 10, Linux
