AVerMedia CM311H CaptureCard (1080p60 HDMI)

PRODUCT IS CURRENTLY NOT AVAILABLE !
AVerMedia CM311H CaptureCard (1080p60 HDMI)
  • 1080p30 !
  • HDMI 1.4a !
  • Mini PCI Express !

1080P 60 FPS HDMI Video Capture CM311-H is a Mini-PCIe HDMI frame grabber capable of capturing videos up to 1080p@60. With AVerMedia Video Engine technology inside, it can perform various video processing tasks such as frame rate conversion, de-interlacing, scaling and so on without consuming the computing power of the target platform.
It is endowed with full functions that are required to capture Full HD video for industrial and commercial markets such as data recorders, medical imaging devices, machine vision or any industrial imaging applications. The CM311-H design is committed to shorten the development schedule and provide integrators with a complete and rugged solution towar
[more]

Share

1080P 60 FPS HDMI Video Capture CM311-H is a Mini-PCIe HDMI frame grabber capable of capturing videos up to 1080p@60. With AVerMedia Video Engine technology inside, it can perform various video processing tasks such as frame rate conversion, de-interlacing, scaling and so on without consuming the computing power of the target platform.
It is endowed with full functions that are required to capture Full HD video for industrial and commercial markets such as data recorders, medical imaging devices, machine vision or any industrial imaging applications. The CM311-H design is committed to shorten the development schedule and provide integrators with a complete and rugged solution towards building their own applications.

Mini PCIe Form Factor and Vibration-proof The compact form factor design of a Mini PCIe card is perfect for small-footprint embedded systems. It is also ideal for solutions that need to be vibration-proof while the mounting holes make it suitable for in-vehicle, military and industrial applications.

  • Max capturing/ recording up to 1920 x 1080 60fps
  • HDMI 1.4a input
  • Mini PCI Express form factor
  • Windows DirectShow compatible
  • Specifically designed SDK




Host Interface PCI Express Gen2 x1
Audio Interface HDMI 1.4a
Audio Format HDMI embedded audio
Audio Sampling Rate 32KHz, 44.1KHz, 48KHz
Connector Type SHLD 30 pin connector
Video Input Interface HDMI
Video Format YUV444: IYU2, AYUV, V410, Y410
YUV422: YUY2, YUYV, UYVY, V210, Y210
YUV420: I420, NV12, YV12
RGB: RGB565, RGB555, RGB24, RGB32, ARGB
Color Depth 8-bit/ 10-bit
Channel No. 1 Ch
Input Resolution 1920x1080p @ 23.98/24/25/29.97/30/50/59.94/60 fps
1920x1080i @ 50/59.94/60 fps
1280x720p @ 50/59.94/60 fps
720x576p @ 50 fps
720x480p @ 59.94/60 fps
640x480p @ 59.94/60 fps
Record Resolution 1920x1080 @ 23.98/24/25/29.97/30/50/59.94/60 fps
1280x720 @ 50/59.94/60 fps
720x576 @ 50 fps
720x480 @ 59.94/60 fps
640x480 @ 59.94/60 fps
Encoding Mode Software Encoding
Multi-Card Support Yes
Supported OS Windows 7/8.1/10 (32/64 bits)*
Form factor Mini PCIe
Dimension (L x W) 50.80 x 30 mm
Power Consumption ~ 4.0W
Operating Temperature 0°C ~ 50°C (by simulation)
Operating Humidity 5% ~ 80% Relative Humidity
Ordering Information

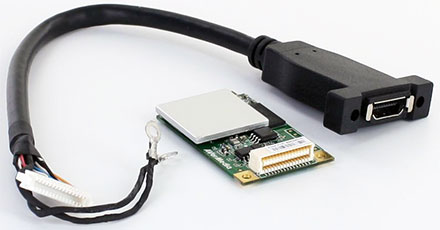

CM311-H Mini-PCIe 1080p 60FPS HDMI Frame Grabber
Accessories 30 pin to HDMI adapter cable
Thermal pad
SDK kits SDK Basic
SDK Pro
SDK Premium Add-on Kits
Data sheet Download (PDF)
Data sheet Print view
Datasheet Download (PDF)
