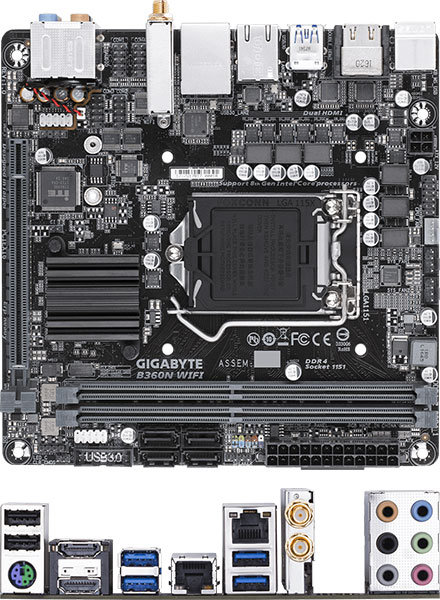

Gigabyte B360N WIFI (for i3, i5, i7 [Sockel LGA1151], B360 Express, 2x LAN, 2x HDMI, WLAN/BT, M.2)

PRODUCT IS CURRENTLY NOT AVAILABLE !
Gigabyte B360N WIFI (for i3, i5, i7 [Sockel LGA1151], B360 Express, 2x LAN, 2x HDMI, WLAN/BT, M.2)
  • 2x HDMI !
  • Dual Gigabit LAN !
  • Gigabyte Features !
  • M.2 slot !

  • Supports 9th and 8th Gen Intel® Core™ Processors
  • Dual Channel Non-ECC Unbuffered DDR4
  • New Hybrid Digital PWM Design
  • Intel® CNVi 802.11ac Wave2 2T2R WIFI
  • High Quality Audio Capacitors and Audio Noise Guard
  • Ultra-Fast M.2 with PCIe Gen3 X4 & SATA interface
  • RGB FUSION supports RGB LED strips in 7 colors
  • Dual Intel® GbE LAN with cFosSpeed Internet Accelerator Software
  • CEC 2019 Ready, Save the Power as Easy as One Click
  • Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
  • Anti-Sulfur Resistors Design
  • Ultra Durable&t [more]

    Share

RAM :

SSD (M.2 NVME):

OS:

Build/Install:

  • Supports 9th and 8th Gen Intel® Core™ Processors
  • Dual Channel Non-ECC Unbuffered DDR4
  • New Hybrid Digital PWM Design
  • Intel® CNVi 802.11ac Wave2 2T2R WIFI
  • High Quality Audio Capacitors and Audio Noise Guard
  • Ultra-Fast M.2 with PCIe Gen3 X4 & SATA interface
  • RGB FUSION supports RGB LED strips in 7 colors
  • Dual Intel® GbE LAN with cFosSpeed Internet Accelerator Software
  • CEC 2019 Ready, Save the Power as Easy as One Click
  • Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
  • Anti-Sulfur Resistors Design
  • Ultra Durable™ 25KV ESD and 15KV Surge LAN Protection
  • Intel® Optane™ Memory Ready
  • GIGABYTE UEFI DualBIOS™

CPU
    Support for 9th and 8th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel®Pentium® processors/Intel® Celeron® processors in the LGA1151 package L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset
    Intel® B360 Express Chipset
Memory
    2 x DDR4 DIMM sockets supporting up to 32 GB of system memory Dual channel memory architecture Support for DDR4 2666/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
    * To support 2666 MHz or XMP memory, you must install an 8th Generation Intel® Core™ i7/i5 processor.
(Please refer "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
    2 x HDMI ports, supporting a maximum resolution of 4096x2160@30 Hz
    * Support for HDMI 1.4 version and HDCP 2.2.
Maximum shared memory of 1 GB
Actual support may vary by CPU
Audio
    Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
LAN
    2 x Intel® GbE LAN chips (10/100/1000 Mbit)
Wireless Communication module
    Intel® CNVi interface 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5 Support for 11ac 160 MHz wireless standard and up to 1.73 Gbps data rate
    * Actual data rate may vary depending on environment and equipment.
Expansion Slots
    1 x PCI Express x16 slot, running at x16
    (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
Storage Interface Chipset:
    1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2A_32G) 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280 PCIe x4/x2 SSD support) (M.2) 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10
Intel® Optane™ Memory Ready
USB
Chipset:
    6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x M.2 Socket 3 connector 1 x CPU fan header 2 x system fan headers 1 x RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.1 Gen 1 header 1 x USB 2.0/1.1 header 4 x serial port headers 1 x speaker header 1 x Clear CMOS jumper 1 x chassis intrusion header
Back Panel Connectors 1 x PS/2 keyboard/mouse port 2 x HDMI ports 4 x USB 3.1 Gen 1 ports 2 x USB 2.0/1.1 ports 2 x RJ-45 ports 2 x SMA antenna connectors (2T2R) 6 x audio jacks
I/O Controller
    iTE® I/O Controller Chip
H/W Monitoring
    Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
    2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
3D OSD
@BIOS
AutoGreen
BIOS Setup
Color Temperature
Cloud Station
EasyTune
Easy RAID
Fast Boot
Game Boost
ON/OFF Charge
Platform Power Management
RGB Fusion
Smart Backup
Smart Keyboard
Smart TimeLock
Smart HUD
System Information Viewer
USB Blocker
V-Tuner Support for Q-Flash Support for Xpress Install
Bundle Software
    Norton® Internet Security (OEM version) cFosSpeed
Operating System
    Support for Windows 10 64-bit
Form Factor
    Mini-ITX Form Factor; 17.0cm x 17.0cm
Remark
    Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
